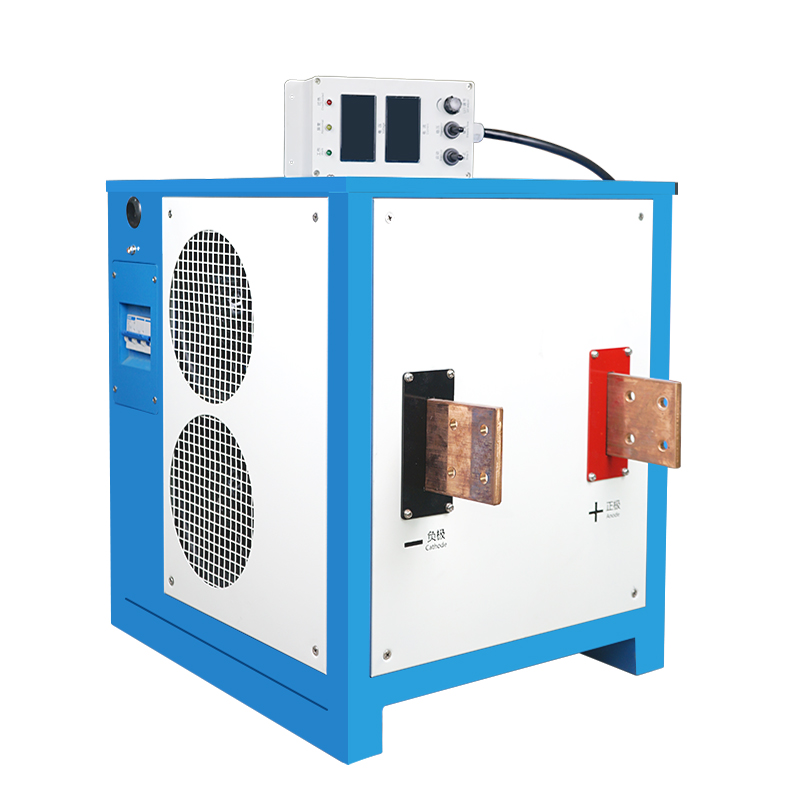

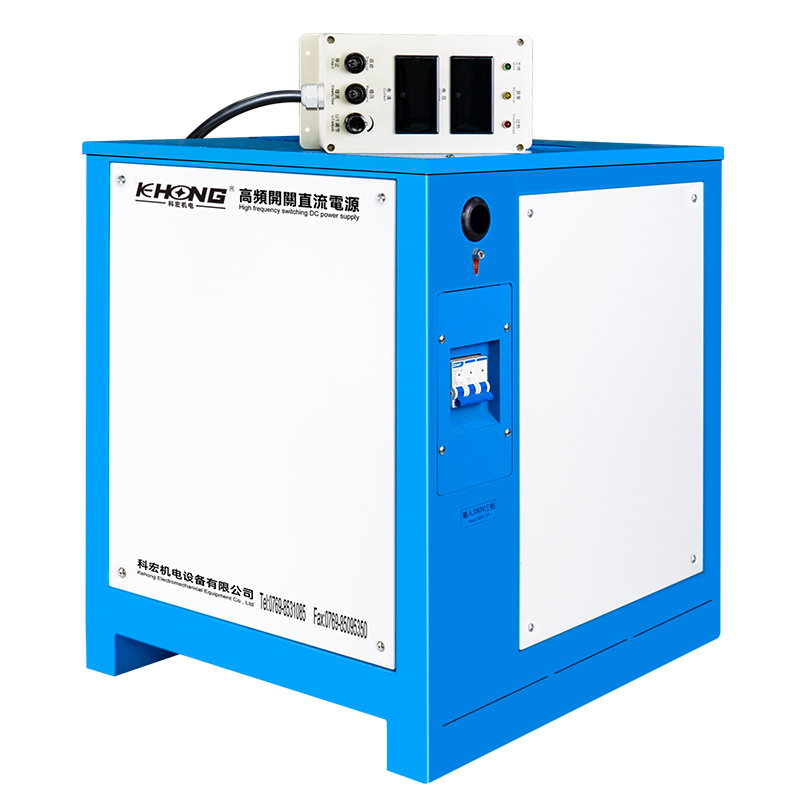

600A 48V High frequency switching power supply IGBT rectifier

high frequency rectifier

2000A available from stock, supporting customized higher power Configuration of overcurrent, overpressure, overheat, short circuit, phase loss protection mode

Customizable for various power models ranging from 50 to 30000A

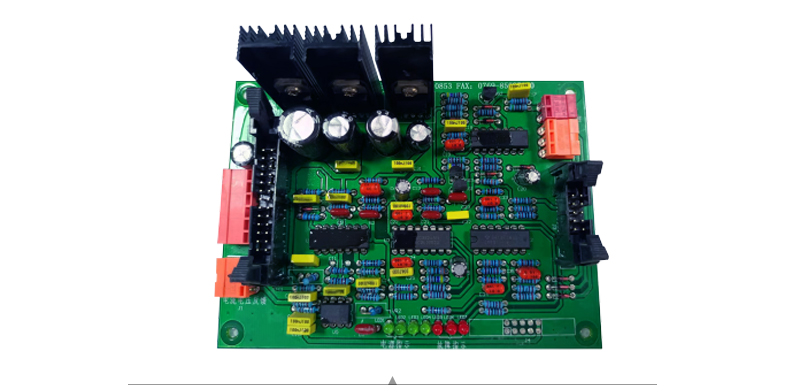

Circuit board
Self produced main control circuit board and drive circuit board with split structure; using high-end components; The port is connected by a computer cable. Accurate control.

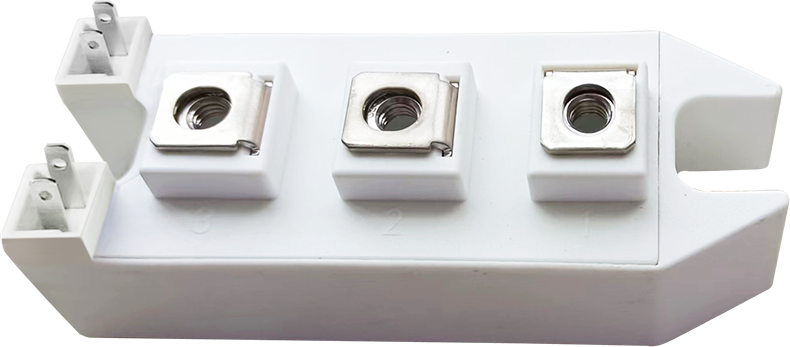

Module
Adopting high-performance IGBT imported driver chips ensuring stable operation and quality assurance.

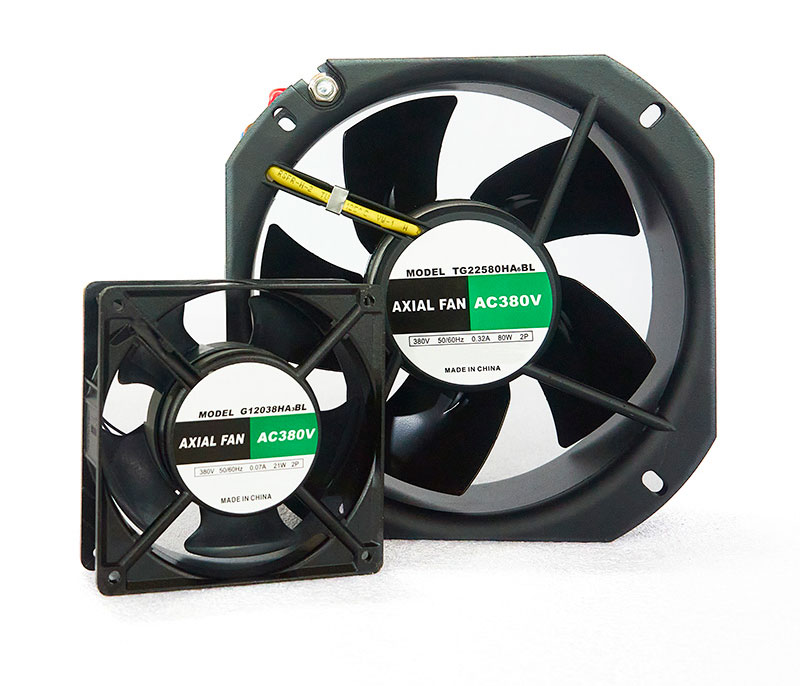

Automatic start stop fan
High air volume axial flow exchange fan dissipates heat quickly, thus reducing the operating temperature of the equipment.
Conductor
T2 copper, copper enamelled wire

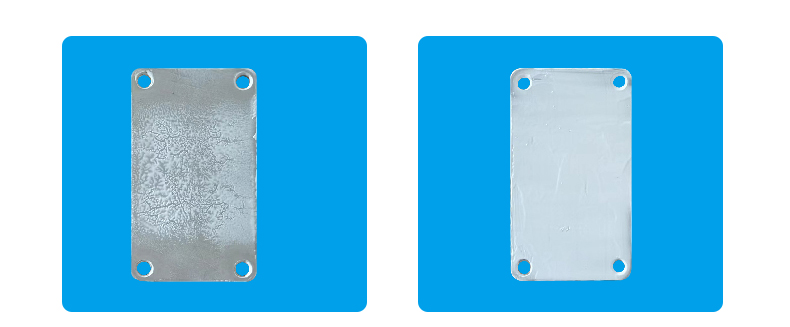

Ordinary thermal grease poor thermal conductivity			High quality heat dissipation paste with a thermal conductivity of 6.0W

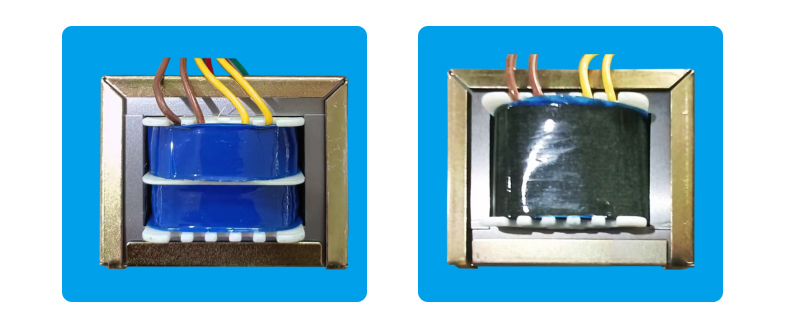

Insulation layer of ordinary transformers is relatively simple			New transformer adopts a double-layer insulation process

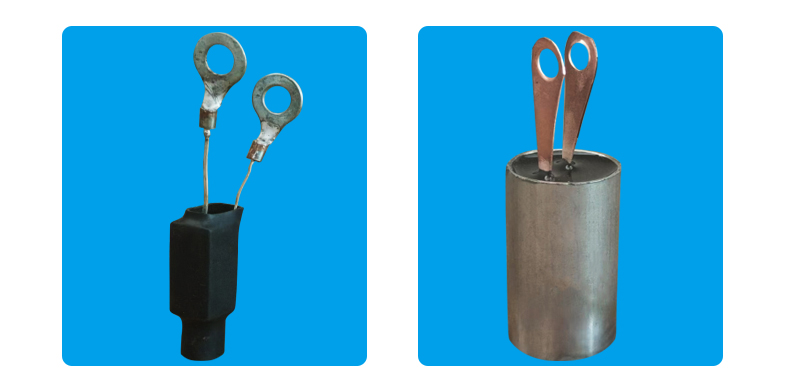

Old style absorption leads are prone to corrosion and have a service life of approximately 1-2 years			Copper lead, titanium shell absorption, service life 10-20 years

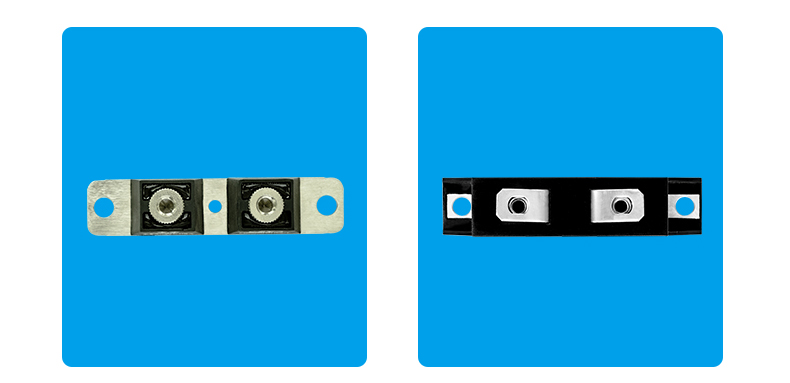

Fast recovery diode voltage drop 0.8~1.1V, recovery time 35-85ns			Schottky diode, voltage drop 0.3~0.6V, recovery time
High frequency rectifier parameters
Model	12V-2000A		Output mode	CV & CC conversion
Output current digital display adjustable	0-2000A		CV & CC accuracy	≤ 1%
Output power	0~24KW		Conductor	T2 copper, copper enamelled wire
Size	L540 * W500 * H600mm		Power factor	≥ 0.90%
Weights	69.0KG		Transformer	Nanocrystalline cores, enamelled copper wire
Input voltage	On demand production		Cooling system	Forced Air Cooling
Load type	Class II		Load rate	≤ 90%
Inverrter frequency	250KHZ		Running state	24 hours full load operation
Output frequency	20~35KHZ		Ambient temperature	-10~50°C
Ripple factor	≤ 3%		Ambient humidity	≥ 80%
Output voltage	DC0-12V or customized		Dustproof and waterproof	IP54
Transformer	Nanocrystalline cores, enamelled copper wire
Conductor material	Automatic protection against overcurrent, overvoltage, phase loss, 70°C.

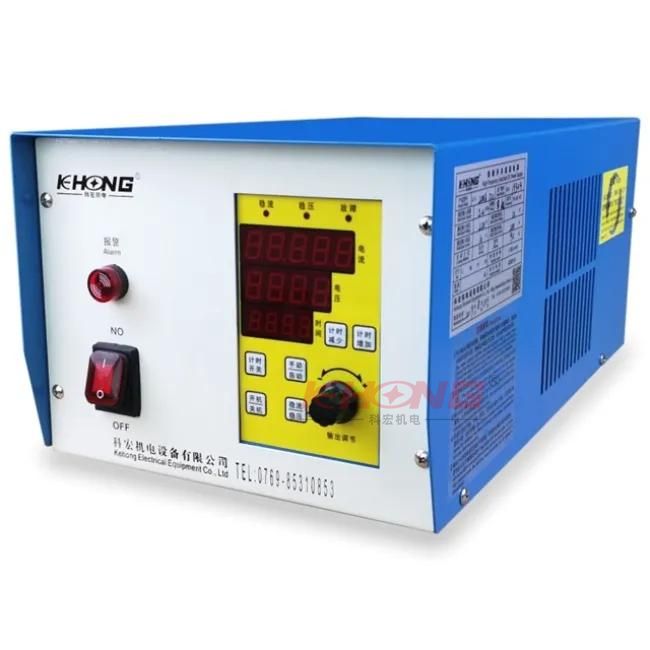

Operation mode	Remote control box to operate voltage current or timing, remote cable length 5 meters
Output voltage	DC0~1000V adjustable, output current: 0~30000A, digital display adjustable
Main components	German Infineon driver chips, Infineon IGBT, Chinese SL Schottky, rectifier bridge
Control circuit	Self-produced split motherboard, driver board, ports are connected by computer wires

Key Features of Igbt Rectifier Manufactured by Kehong:
1. Flexible Product Specifications: The Igbt Rectifier offers a specification of 12V-5000A with a variety of options available for selection. It features an adjustable DC output voltage of 0-12V and an adjustable output current of 0-5000A, displayed digitally.

2. Versatile Input Voltage: The standard input voltage is 380V3P/50Hz, with customization options available for 220V3P, 415V3P/50~60Hz. It operates within an error value of ±10%, with a rated power ranging from 0 to 6KW.

3. Dual Output Mode: The rectifier features steady pressure and steady flow conversion modes. Its primary cooling mode is water cooling, but Air Cooling is also available as an option.

4. High Output Frequency: The rectifier offers an output frequency of 20~35KHz, with a ripple coefficient of approximately 3.9%.

5. Comprehensive Protection Technology: The device incorporates advanced protection features including automatic protection at 70℃, over-current protection, over-voltage protection, and phase-lack protection.

6. Remote Control Operation: It can be operated via a remote control box that allows control of the operating voltage, current, or timing. The remote wire has a length of 5 meters, with extensions available upon request.

7. High-Quality Components: The rectifier utilizes a German Infineon driver chip, Infineon IGBT, China SL Nitrogen, and a rectifier bridge.

8. Superior Conductor Material: The conductor is made of T2 Copper Sheet and Braided Belt, while the transformer comprises a nanocrystalline magnetic core and copper enameled wire, exceeding national standards for conductor cross-sections.

9. Self-Produced Control Circuit: The main control circuit board and drive circuit board are self-produced, featuring a split structure connected by computer wire. This design reflects over a decade of technological expertise.
